Ring modulator / tone generator: MadRing by novaflash

MadRing è un ring modulator / tone generator messo a disposizione da novaflash.

Features principali (in inglese):

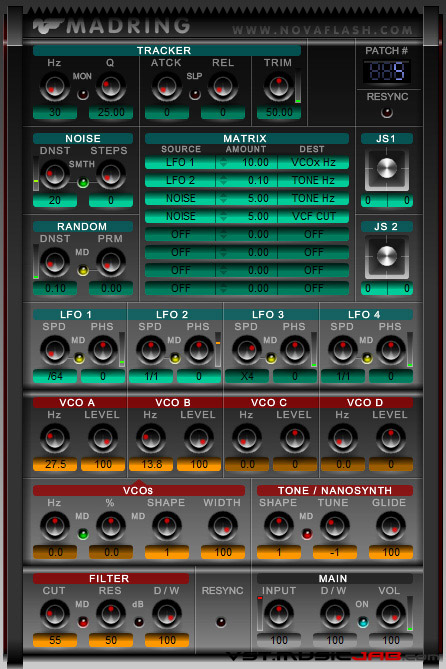

MadRing is a ring modulator and a tone generator.

Essentialy based on 8 VCO and 2 noises generator, a large matrix allow many combinations to shape or generate your own sound.

RESYNC: re-synchronise all the oscillators phases (automaticly done when changing preset).

LFOs:

SPEED: 3 speed mode : BPM, BPM Host, Hz (the “hints” on text field indicate time in ms).
PHASE: +-90?_????.

NOISE:

DNST: Density of grain.
SMTH: Smooth (none, soft, hard).
STEPS: fine to coarse steps.

RANDOM:

NST: DENSITY or Speed (Hz).
NOISE / PARAM = smooth.
S&H / PARAM = smooth.
SPRING / PARAM = Hz modulated by DNST.

TRACKER :

Follow the incomming signal.
Hz/Q/mon : BPF filter.
ATCK/REL : envelope folower, time setting (ms).
TRIM : adjust the output signal.

MATRIX: There is a special destination called NODE. NODE allow to stack more than one source and can be adjusted through the NODE LEVEL. Useful to extend the MATRIX capabilities.

VCOs:

Hz: 8KHz, can be overiden trough the text field up to 16Khz.
LEVEL: negative or positive.
Hz: Frequency global shift.
%: Frequency global shift.
SHAPE: 0=sine, CCW=SAW, CW=SQUARE, set harmonics number.
WIDTH: channels phase shifting.

TONE/nanoSynth:

nanoSynth is a very small monophonic synth.
SHAPE: 0=sine, CCW=SAW, CW=SQUARE.
MD: MODE : TONE or nanoSynth selection mode.
TUNE: Following MD, Hz or Octave.
GLIDE: only available in nanoSynth mode.

FILTER:

CUT-OFF.
RESONANCE.
D/W: DRY / WET, to disable set on left the knob.
MD: MODE LPF, HPF, BPF.
dB: 12 or 24.

MAIN:

INPUT: adjust the external audio signal incomming.
More than 100% introduce a “special” distorsion.
